DK Series Water Bath
DKB High precision Water Bath

I . applications:

Suitable for incubation and thermal treatment in different fields of applications .

II . Features:

1. The working chamber and the lid are made of stainless steel.
2. Intelligent temperature controller is based microprocessor with PID parameters controlling function .Digital display of set and actual temperatures. High temperature controlling accuracy and reliability.
3. If product that has the inner circle water pumps, after install the outer circle, it can be output the constant temperature water

III. Specifications:

Product

Water Bath

Water Bath (three ways)

High precision Water Bath

Model

DK-420

DK-600

DK-8A

DKB-8A

DK-8B

DK-420S

DK-600S

DKB-501A

Mains voltage

220V.50Hz

Temperature control range

RT+5~65 ?

RT+5~100 ?

Temperature fluctuation

?0.5?

?0.1?

?0.5?

?0.1?

Consumption Power

500W

1000W

1050W

1500W

700W

2000W

750W

Flux water pump



41/min



41/min

Dimensions of the working chamber

420×180× 110mm

600×300× 150mm

450×300×170mm

420×180×110mm

600×300×150mm

250×200× 200mm

Product

Electric Water Bath

Water Bath

Model

DK -S22

DK-S24

DK-S26

DK-S28

DK-8D

Mains voltage

220V.50Hz

Temperature control range

RT+5~100 ?

Temperature fluctuation

?0.5?

Consumption Power

500W

1000W

1500W

2000W

750W

Dimensions of the working chamber

300 × 150 × 110mm

300 × 300 × 110mm

450 × 300 × 110mm

600 × 300 × 110mm

152 × 126 × 110mm × 3

Remark

Two-place

Two-rowFour-place

Two-rowSix-place

Two-rowEight-place

Three-placeThree-tempeature

Model THZ Platform Constant Temperature Shaking Incubator
L Model LHZ&LQZ Standing Constant &Shaking Incubator with Temperature

I . Applications :

It`s applicable to incubate , ferment and crossbreed for the bacteria in medical, biology ,environment laboratory and scientific research institutes.

II . Features :

1. Gather with the Constant Incubator and Shaking Incubator ,which is used two ways.
2.Intelligent temperature controller is based microprocessor with PID parameters controlling function .Digital display of set and actual temperatures. High temperature controlling accuracy and reliability.
3.Microprocessors` shaking control digital display of set and determines frequency .And it tunning steadily and reliable.
4.The lid of model THZ use whole glass frame so as to observe the goods in the chamber easily.
5.Model LQZ use the standing large capacity working chamber, which is able to place triangle flask. And the door opens by the kick-start, which is easy to use.

III. Specifications :

 Products

Platform Constant Shaking Incubator

Standing Shaking Incubator

Standing Shaking Incubator with Temperature

Model

THZ312

THZ320

LHZ-111

LQZ-211

Mains voltage

220V. 50Hz

Temperature control range

0~280rpm

Vibrate Shaking function

? 28mm

? 30mm

Size of board

370 × 320mm

440 × 440mm

750 × 480mm

Standard configure

100ml×3? 150ml×3? 250ml×3?

150ml×3? 250ml×3? 500ml×3?

150ml×4??250ml×4??500ml×4? 1000ml×4?

Max dimensions

150ml×12?? 250×12?? 500ml×5?? 1000×5?

150ml×22?? 250×22?? 500ml×9?? 1000×9?

150ml×32?? 250×32??500ml×12?? 1000×12??2000 ×10?

Temperature control range

RT+5~50?

5~50?

Teperature control precision

? 0.1 ?

Temperature fluctuation

? 0.5 ?

Timing ramg

0~99.9hours

Consumption power

260w

450w

1500w

1800w

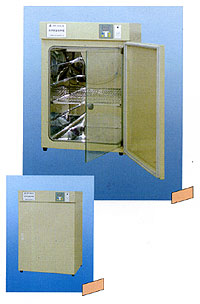

DNP Series Electric Thermostatic Incubator

I. Applications:

It is a necessary apparatus for scientific researches, being applicable to storage of strains and culture of organisms in the fields of medical treatment, public health, pharmaceuticals, biology and agricultural science.


II. Features:

1..Intelligent temperature controller is based microprocessor with PID parameters controlling function .Digital display of set and actual temperatures. High temperature controlling accuracy and reliability.
2. There is a layer of toughtoned-glass door with sealing rubber as the inner lay of the outer door for convenient observation of the in-incubator conditions during is without affecting in-incubator temperature .
3. The working chamber use mirror stainless steel and the arc roundish are easy to clean.

III. Specifications:

Model

DNP-9022

DNP-9052

DNP-9082

DNP-9162

DNP-9272

Mains voltage

220V.50Hz

Temperature control range

RT+5~65 ?

Temperature fluctuation

? 0.5 ?

Consumption power

150W

200W

250W

400W

600W

Dimensions of the working chamber

250 × 250 × 320mm

350 × 350 × 410mm

400 × 400 × 500mm

500 × 500 × 650mm

600 × 600 × 750mm

GNP Series Water-jacket Thermostatic Incubator


Characteristic: Water-jacket heating mode. Temperature is even in the working chamber. if power failure, the chamber can keep constant temperature for longer.

Specifications:

Model

GNP-9050

GNP-9080

GNP-9160

GNP-9270

Mains voltage

220V.50Hz

Temperature control range

RT+5~65 ?

Temperature fluctuation

? 0.5 ?

Consumption power

530W

830W

1230W

1730W

Dimensions of the working chamber

350 × 350 × 410mm

400 × 400 × 500mm

500 × 500 × 650mm

600 × 600 × 750mm

HWS Series Constant Temperature &Humidity Chamber

I. Applications:

It is applicable to humidity testing in the medicinal, spin, food and biology and so on.


II. Feature:

1.Shelves inside the chamber are easy to detach and convenient to wash ,the henght of each shelf can also be adjusted.
2.There is a layer of toughtoned-glass offr with sealing rubber as the inner lay of the outer door for convenient observation of the in-incubator temperature.
3.High precision and large capacity humidity apparatus, which be sure the humidity quickly and low wave.
4.Compressor from French "TaiKang" .which is whole closed .The system was equipped with the function of delay-start and high/low pressure protection

III. Speclifucations

Model

HWS-080

HWS-150

HWS-250

HWS-400

Mains voltage

220V, 50Hz

Temperature control range

5~50 ?

Temperature fluctuation

? 5 ?

Humidity control range

40~95%RH

Humidity fluctuation

? 5%RH

Consumption power

1400W

1500W

1800W

2250W

Dimensions of the working chamber

400 × 400 × 500mm

500 × 450 × 650mm

600 × 550 × 750mm

600 × 650 × 1000mm

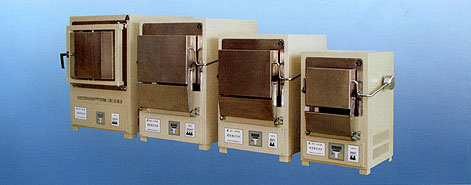

Model SXL Program Control Muffle

I. Applications:

It`s applicable tests as heat small steel in- ineustrial and mining enterprisecollege, laboratory and so on. It does also can melt metal, crockery and so on.


II. Feature:

1.There are microcomputer control temperature system and no touch control ,which is accurately and reliably .Digital of set and actual temperature display at the same time.
2.Both chest and door use the stainless steel so that the product durable.
3.The door design special, which is easy to use .And the surface of door is not face to the user when opening. And the goods can be put on the opening door at the same time
4.After the door open or close, the heating power can be stopped or gotten insure the safety .

III. Specifications:

Model

1002

1008

1016

1030

1208

1216

1304

1313

Mains voltage

220V. 50Hz

380V. 50Hz

220V. 50Hz

380V. 50Hz

TemperatureControl range

500 ~ 1000?

500 ~ 1200?

500 ~ 1300?

Consumption Power

2.5KW

4KW

8KW

12KW

5KW

10KW

6KW

10KW

Temperature fluctuation

?3?

Dimensions of working chamber

120×200
×80mm

200×300
×120mm

250×400
×160mm

300×500
×200mm

200×300
×120mm

250×400
×160mm

150×250
×100mm

200×400
×160mm

Model GDH High/Low Temperature Experimental Oven
Model GDHS High/Low Temperature and Damp Heat Oven

I. Applications:

It is applicable to such test as experiment and detect for high/low temperature or damp heat environment in industrial and mining enterprises as well as in laboratory and scientific research institute.

II. Feature:
1.The working chamber si made of stainless steel and has circle arc shape ,which is easy to clean
2.Whole close compressor is French ,which run sreadily and reliability.
3..Intelligent temperature controller is based microprocessor with PID parameters controlling function .Digital display of set and actual temperatures. High temperature controlling accuracy and reliability
4.Air circulation system is consisted of low-noisy fan and optimal air duct, reaching a uniform temperature inside the working chasmber.
5.There is a 30mm-diameter testing hole nearside the chest, which is applied by the testing power line and signal line.
6.The chamber also can use the printer.,

III. Specifications:

Model

GDH-2005A(B.C)
GDHS-2005A(B.C)

GDH-2010A(B.C)
GDHS-2010A(B.C)

GDH-2025A(B.C)
GDHS-2025A(B.C)

GDH-2050A(B.C)
GDHS-2050A(B.C)

Temperature control range

A:-20 ~ 100?,B:-40 ~ 100?,C:-70 ~ 100?

Humidity control range

40 ~ 98 % RH ( GDHS )

Temperature fluctuatin

?0.5?

Equality of rise temperature

?2?

Time of rise temperature

-40 ~ 100??60min

Time of fall temperature

25 ~- 40??90min

Mains voltage

A.B:220V,50Hz
C:380V,50Hz

A:220V,50Hz
B.C:380V,50Hz

380V,50Hz

Dimensions of the working chambe

350×320×450mm

400×500×500mm

600×550×750mm

700×800×890mm

Safety set

Each protect function.
