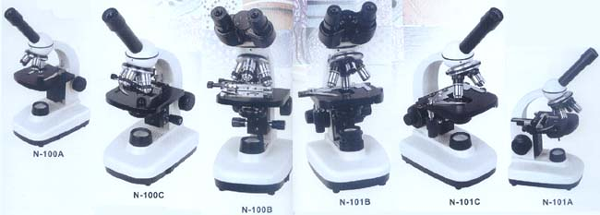

N-100A
N-100C
N-100B
N-101A
N-101C
N-101B
VIEWING HEAD
EYEPIECE
OBJECTIVE
(ACHROMATIC)
STAGE
FOCUSING
CONDENSER
OPTIONAL
ACCESSORIES
|
|
MICROSCOPE
|
|
||||||
|
N-100A
|
N-100C
|
N-100B
|
N-101A
|
N-101C
|
N-101B
|
|
|
VIEWING HEAD
|
MONOCULAR HEAD (45°, 360°) | BINOCULA HEAD (30°, 360° ) | MONOCULAR HEAD (45°, 360°) | BINOCULA HEAD (30°, 360° ) | ||
| NOSEPIECE | TRIPLE NOSEPIECE | QUADRUPLE NOSEPIECE | ||||
|
EYEPIECE
|
WILD FIELD EYEPIECE WF10X | |||||
|
OBJECTIVE
(ACHROMATIC)
|
35MM OBJECTIVE 4X, 10X, 40X 9S) | 35MM OBJECTIVE 4X, 10X, 40X (S), 100X (S,OIL) | OBJECTIVE (DIN) 4X, 10X, 40X(S), 100X (S,OIL) | |||
|
STAGE
|
PLAIN STAGE 125X120MM | WITH ATTACHABLE MECHANICAL STAGE, MOVING RANGE 60X30MM | DOUBLE LAYERS MECHANICAL STAGE 120X120MM/60X30MM | |||
|
FOCUSING
|
COARSE | SEPARATE COARSE & FINE ADJUSTMENT | COAXIAL COARSE & FINE ADJUSTMENT, RANGE 13MM, FINE DIVISION 0.002MM | |||
|
CONDENSER
|
SINGLE LENS W/IRIS | ABBE CONDENSER NA1.25 WITH IRIS DIAPHRAGM & FILTER, SPRIAL UP & DOWN | ABE NA1.25 W/IRIS, RACK & PINION ADJUSTMENT | |||
| ILLUMINATION | FLUORENSCENT LAMP 7W, 220V OR 110V | HALOGEN LAMP 220V OR 110V/6V15W, BRIGHTNESS ADJUSTMENT | ||||
|
OPTIONAL
ACCESSORIES
|
MIRROR, DEMENSTRATION HEAD, EYEPIECE P16X | |||||
|
||||
|

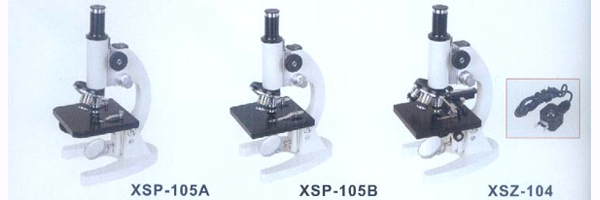

XSP-105A
|
XSP-105B
|
XSZ-104
|
||
| EYEPIECE | H5X, H10X, H12.5X |
O
|
||
| H5X, H10X, H16X |
O
|
O
|
||
| OBJECTIVE | 35MM OBJECTIVE 10X, 40X (S) |
O
|
O
|
|
| 35MM OBJECTIVE 10X, 40X (S), 100X (S,OIL) |
O
|
|||
| STAGE | PLAIN STAGE WITH SLIDE CLIPS, 110X120MM |
O
|
O
|
|
| WITH ATTACHABLE MECHANICAL STAGE, 110X120MM/60X30MM |
O
|
|||
| CONDENSER | DISC DIAPHRAM |
O
|
||
| IRIS DIAPHRAM |
O
|
|||
| ABE NA1.25 WITH IRIS DIAPHRAM AND FILTER |
O
|
|||
| ILLUMINATION | PLAN-CONCAVE MIRROR |
O
|
O
|
O
|
| OPTIONS | OBJECTIVE 4X, 60X 9S); ATTACHABLE MECHANICAL STAGE; ATTACHABLE ILLUMINATOR | |||
   |
|||
|
XSP-102M
|
XSP-102A
|
XSP-102B
|
|
| VIEWING HEAD | MONOCULAR HEAD, AT 45°, 360° ROTATABLE | ||
| EYEPIECE | WIDE FIELD EYEPIECE WF10X | ||
| OBJECTIVE | ACHROMATIC DIN 4X, 10X, 40X (S) | ACHROMATIC DIN 4X, 10X, 40X (S), 100X (S,OIL) | |
| STAGE | PLAIN STAGE WITH SLIDE CLIPS, 120X130MM | WITH ATTACHABLE MECHANICAL STAGE, 110X120MM/60X30MM | |
| FOCUSING | SEPARATE COARSE & FINE ADJUSTMENT WITH TENSION CO***OL | ||
| CONDENSER | SINGLE LENS WITH DISC DIAPHRAM | ABBE NA1.25 WITH IRIS DIAPHRAM AND FILTER | |
| ILLUMINATION | PLAN-CONCAVE MIRROR | BUILT-IN ILLUMINATION, INCANDESCENT LAMP 110V OR 220V/15W | |
