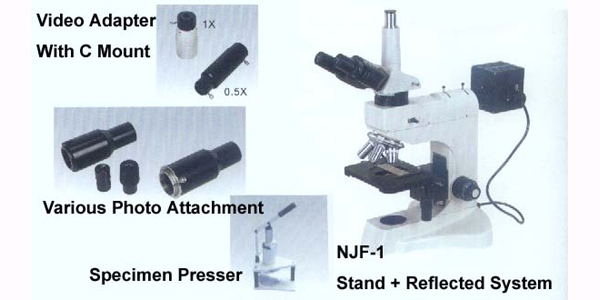

| NJF-1 UP-RIGHT METALLURGICAL MICROSCOPE |
| SPECIFICATIONS OF STAND |
| - TRINOCULAR HEAD: INCLINED AT 30°, INTERPUPILLARY DISTANCE ADJUSTMENT 55-75MM, DIOPTRIC ADJUSTMENT +/- 5DIO ON ONE EYEPIECE TUBE, VERTICAL PHOTO/VDEO PORT (100%-0% OR 20%-80%) |
| - EYRPIECE: WF10X/18 ( 2 PURCHASE) |
| WF10X/18 W/0.1MM MICROMETER AND CROSS HAIR (1PC) |
| - NOSEPIECE: QUINTUPLE NOSEPIECE WITH CLICK STOP (3 HOLES FOR BRIGHT FIELD USE OBJECTIVES, 2 HOLES FOR DARK FIELD USE OBJECTIVES) |
| - STAGE: DOUBLE LAYER MECHANICAL STAGE, SIZE 185 X 142MM, MOVEMENT 75 X 55MM, NONIUS READING UP TO 0.1MM |
| - FOCUSING KNOBS: COAXIAL FINE AND COARSE ADJUSTMENT, PRE-FOCUSING MECHANISM (ON LEFT KNOB), TENSION ADJUSTMENT RING (ON RIGHT KNOB) |
| - MAIN POWER: 100V 0R 220V |
| - SPARE PARTS: T-H LAMP 12V50W (FOR METALLURGICAL USE) (2PCS) |
| T-H LAMP 12V50W (FOR BIOLOGICAL USE) (2PCS) |
| FUSE 3A (2PCS) |
| FOR METALLURGICAL USE (REFLECTED SYSTEM): |
| - POLARIZATION SYSTEM: BUILT-IN POLARIZER AND ANALYZER |
| - BUILT-IN CONVERSION SLIDE FOR BRIGHT FIELD/DARK FIELD ILLUMINATION |
| - INFINITIVE PLAN ACHROMATIC OBJECTIVES: |
| 4X/0.1/…/_ (BRIGHT FIELD USE) |
| 10X/0.25/…/_ (BRIGHT FIELD/DARK FIELD USE) |
| 20X/0.40/…/_ (BRIGHT FIELD/DARK FIELD USE) |
| 40X/0.65/…/0 (BRIGHT FIELD USE) |
| 80X/0.90/…/0 (BRIGHT FIELD USE) |
| - OBJECT MICROMETER 0.01MM USED WITH MICROMETER EYEPIECE FOR CALIBRATION |
| - SPECIMEN PREPARATION PLATE |
| - EPI-ILLUMINATOR WITH IRIS APERTURE DIAHRAGM AND IRIS FIELD DIAPHRAGM |
| - FILTERS: BLUE, GREEN, YELLOW (1PC OF EACH) |
| - ILLUMINATION: LAMP CENTERABLE, T-H LAMP 12V50W, BRIGHTNESS ADJUSTABLE |
| OPTIONAL ACCESSORIES |
| EYEPIECE: WF8X/18, H1.5X/14 |
| PHOTO ATTACHMENT: 4X PHOTO EYEPIECE, 10X VIEWING EYEPIECE PHOTO CAMERA ADAPTER (CLICK OR THREAD ADAPTION) |
| VIDEO ATTACHMENT: 1X OR 0.5X VIDEO ADAPTER WITH C MOUNT |
| SPECIMEN PRESSER: FOR METALLURGICAL SPECIMEN PREPARATION |
