MICROSCOPE
|
|

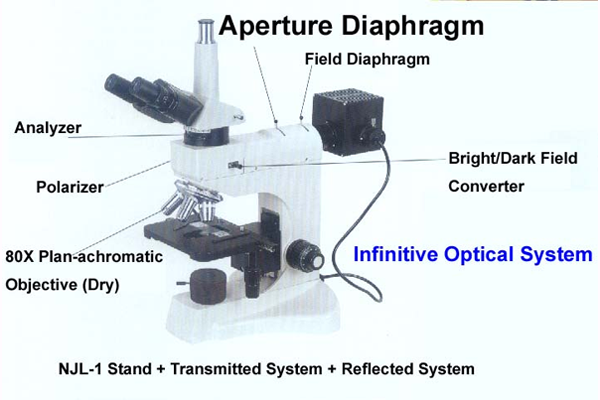

| NJL-1 UP-RIGHT TRANSMITTED AND REFLECTED METALLURGICAL MICROSCOPE |
| FOR BIOLOGICAL USE (TRANSMITTED SYSTEM) |
| - INFINITIVE PLAN ACHROMATIC OBJECTIVES: 40X/0.65/…/0.17 (SPRING LOADED) |
| 100X/1.25/…/0.17 (OIL, SPRING LOADED) |
| - IMMERSION OIL USED FOR 100X OBJECTIVE |
| - CONDENSER: NA1.25 ABBE CONDENSER WITH IRIS DIAPHRAGM AND FILTER HOLDER AND BLUE FILTER |
| - COLLECTOR: CENTERABLE KOHLER COLLECTOR WITH FIELD IRIS DIAPHRAGM |
| - POLARIZER ON COLLECTOR AND USED WITH ANALYZER UNDER TRINOCULAR HEAD |
| - ILLUMINATION: BUILT-IN BASE WITH BRIGHTNESS ADJUSTMENT, 12V20W T-H LAMP |
